Calculations for steel beams and columns
Click to enlarge

ARCHITECT / BUILDERS

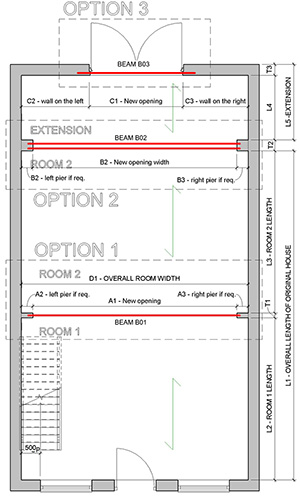

If you need a calculation package for one (or more) of the options as per the plan on the left, please download one from the below files which suits the one from your project.

Giving the data from site will increase the speed of preparing the calculation package for your client and will allow you to send the calculations to Building Control. If in doubt please don`t hesitate to contact me directly here.

Calculation packages for all of the below options include the steel beam design, padstone design, masonry check and checking loading on the existing foundations. If the loading from new beam exceeds the capacity of the existing foundations then additional calculations are required for strengthening the existing foundations or new pad footing.

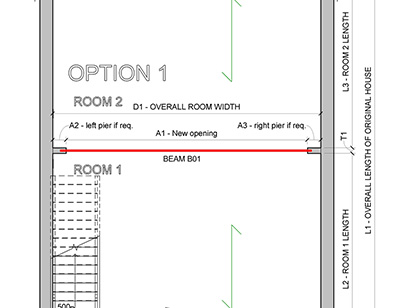

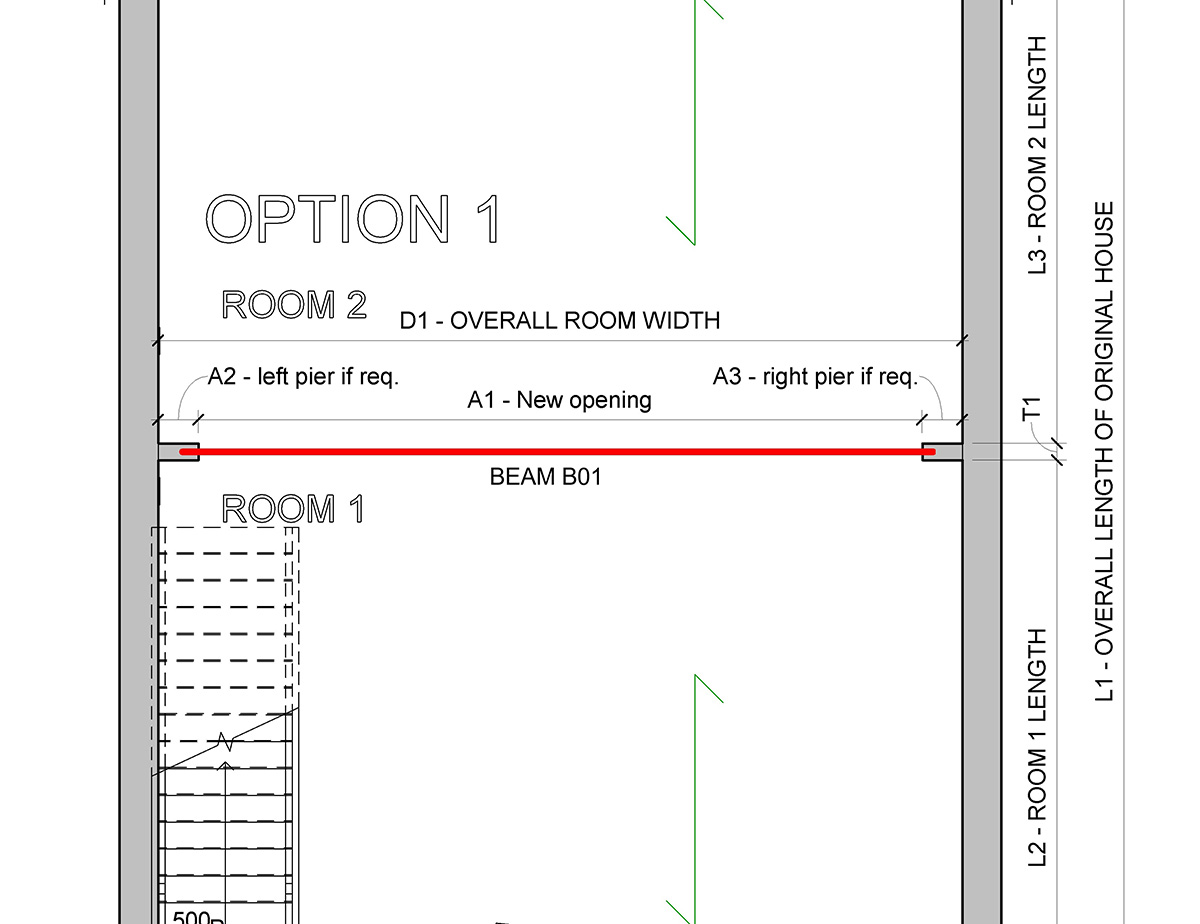

To remove existing loadbearing wall between two rooms


Click to enlarge

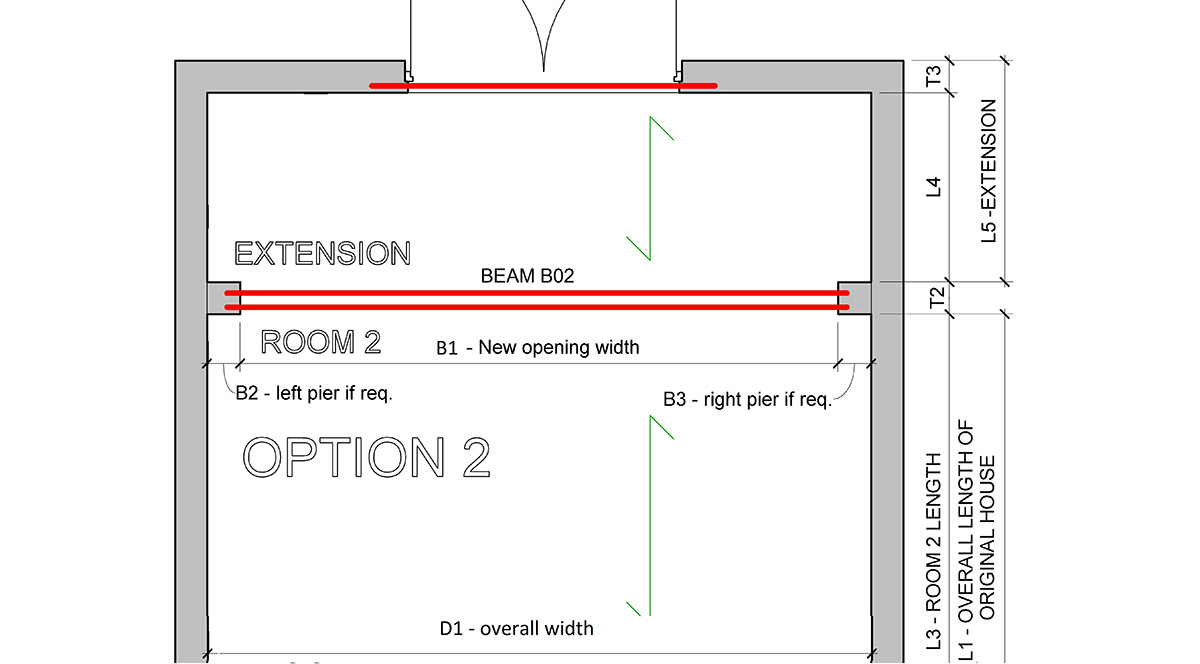

To remove existing external wall between rear room and new extension


Click to enlarge

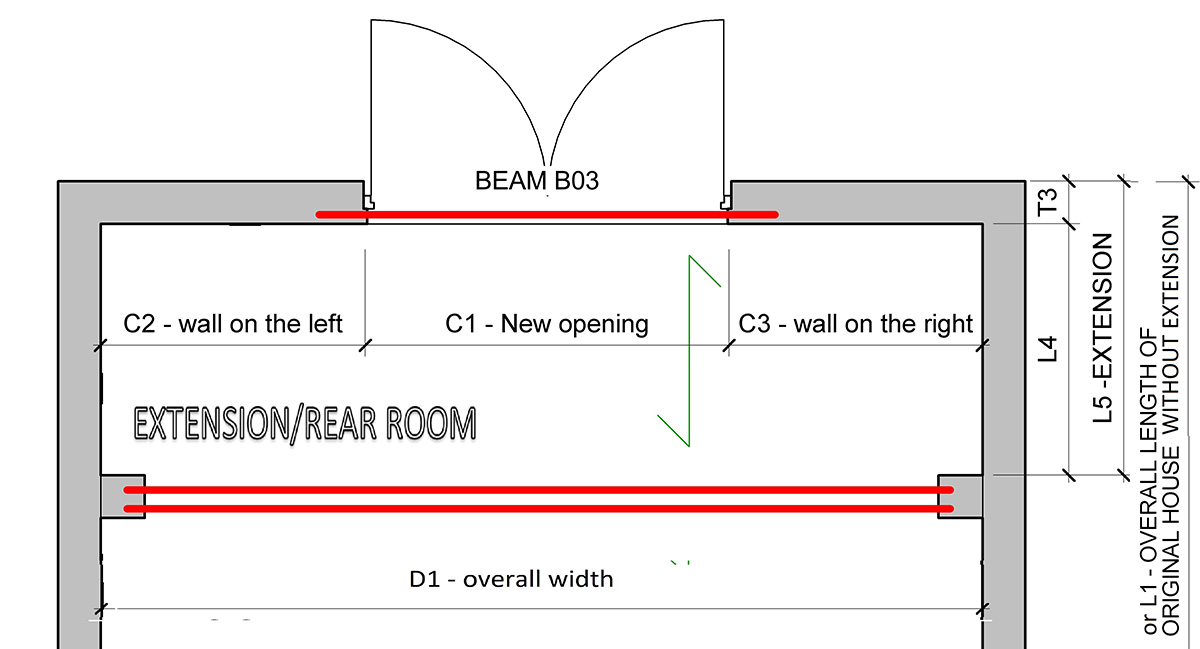

To remove existing external wall/widening existing opening for new bigger doors


Click to enlarge

Please choose from one of the following and click continue



The architect / builder is responsible for the correct completion of this form. If in doubt, please contact me.
